︎︎︎ Games of Deletion
Tags :
︎ Educational AR Game
︎ Book
︎ M.Arch Thesis
Status :
Presented
Role :
Developer, Designer, CGI, Writer
Buy the book
︎SCI-Arc
︎ Collaboration with Runze Zhang
︎ Los Angeles, California
Tags :
︎ Educational AR Game
︎ Book
︎ M.Arch Thesis
Status :
Presented
Role :
Developer, Designer, CGI, Writer
Buy the book
︎SCI-Arc
︎ Collaboration with Runze Zhang
︎ Los Angeles, California
︎ 2018 09
![]()

︎ Project Breakdown
. “Games of Deletion” is an AR project speculating on the use of Augmented Reality, specifically related to design, architecture and urbanism
. the mobile application allows two players located in different locations to communicate with each other through a portal opened up using Image Tracking AR on large scale murals
. the game consists in pushing and pulling visual urban informations from one location to the other, generating a collage of information and letting the two location collapse in a unique physical-digital environment
. this project opened up a lot of diverse possible minor application taking advantage of geo-location SDKs as Mapbox
. Games of Deletion can be considered a project still in development and that explores the most updated available AR templates
. Games of Deletion has been praised as Best Graduate Thesis in 2018 at SCI-Arc
. the mobile application allows two players located in different locations to communicate with each other through a portal opened up using Image Tracking AR on large scale murals
. the game consists in pushing and pulling visual urban informations from one location to the other, generating a collage of information and letting the two location collapse in a unique physical-digital environment
. this project opened up a lot of diverse possible minor application taking advantage of geo-location SDKs as Mapbox
. Games of Deletion can be considered a project still in development and that explores the most updated available AR templates
. Games of Deletion has been praised as Best Graduate Thesis in 2018 at SCI-Arc

︎ Games of Deletion : Rise of an Interface
. this project starts with the writing of a semi-fictional story that try listing all the possible application of AR in the field of architecture and their implications.
. The book narrates the story of Kay, a design student that lives in a world where the “League of Games of Deletions” is the main entity defining society and advancment in technology
. strongly inspired by stories as “Battle Royale” and “Ready Player One”, “Games of Deletion” approaches AR from an educational perspective, being a reference for students starting to appreciate AR from application intersecting the design field
. the book narrating the whole story is available in the impermament collection of A+D Musueum in Los Angeles
Read it
. this project starts with the writing of a semi-fictional story that try listing all the possible application of AR in the field of architecture and their implications.
. The book narrates the story of Kay, a design student that lives in a world where the “League of Games of Deletions” is the main entity defining society and advancment in technology
. strongly inspired by stories as “Battle Royale” and “Ready Player One”, “Games of Deletion” approaches AR from an educational perspective, being a reference for students starting to appreciate AR from application intersecting the design field
. the book narrating the whole story is available in the impermament collection of A+D Musueum in Los Angeles
Read it

︎
. Demonstrative Video featuring CGI and Real Time demonstration.
. 00.00 CGI : Concept Video First Person View
. 02.26 CGI : Concept Video Trailer
. 04.51 AR Real Time Demo
. 07.24 CGI : Video Diagram
. more real time materal at IG thesis account @gamesofdeletion
. Demonstrative Video featuring CGI and Real Time demonstration.
. 00.00 CGI : Concept Video First Person View
. 02.26 CGI : Concept Video Trailer
. 04.51 AR Real Time Demo
. 07.24 CGI : Video Diagram
. more real time materal at IG thesis account @gamesofdeletion
︎ Shared Code Sample :
Boolean Shaders
. the main feature of the AR demo is determined by the application of shaders using AR Foundation’s AR templates

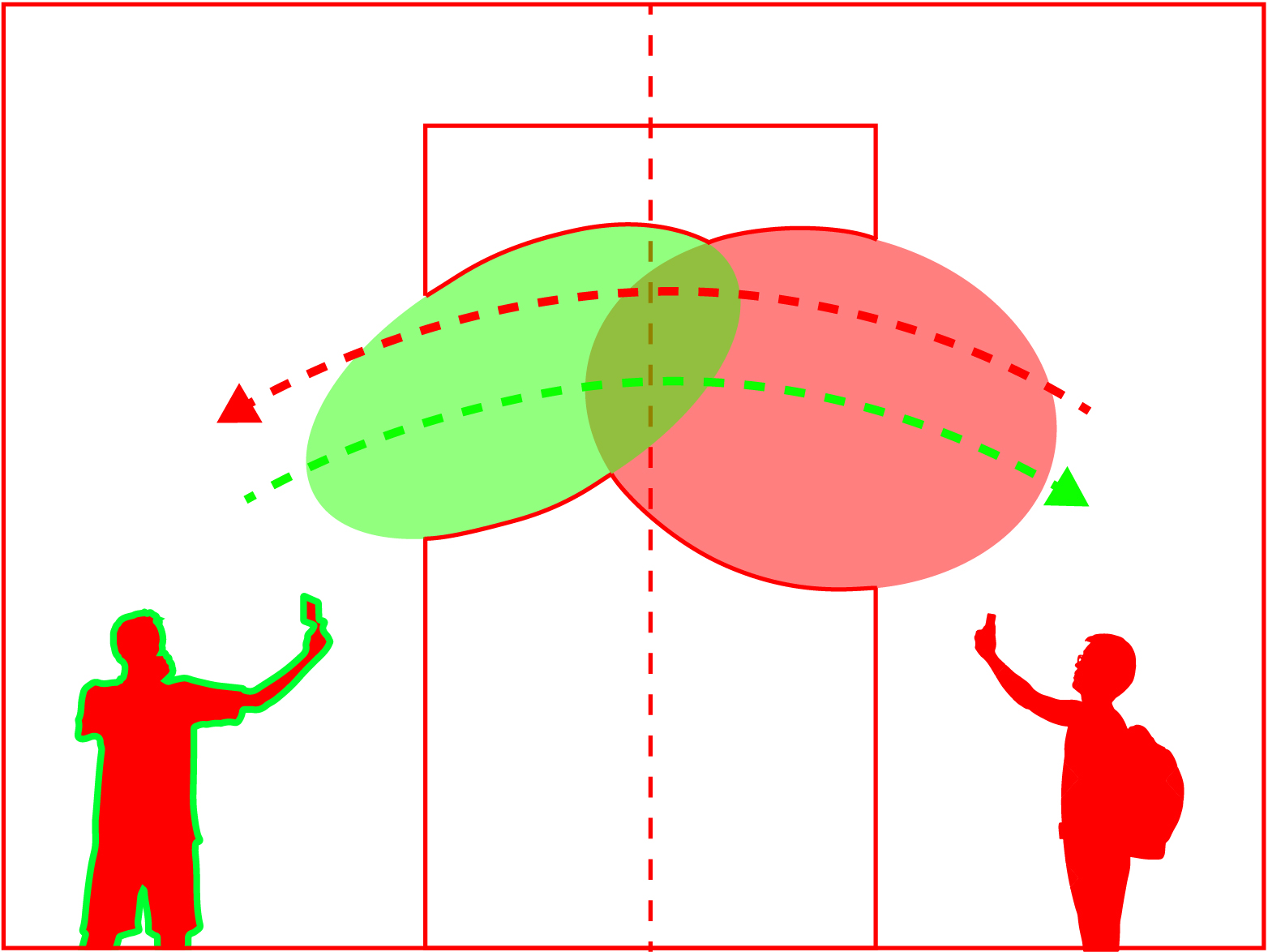

. the shaders simulate a boolean operation between solids and with added transparency create the effect showcased in the previous diagram
. two solid shapes intersecting open up a “portal” where the players can see each other and conceptually transfering information through the portal
. This has been a process of finding more resources, putting them together and exploring shaders, especially the stencil buffer shader that makes the “portal effect” possible
. significant sources and thanks
Unity : Writing Shaders
YouTube : quill18creates
YouTube : PushyPixels
YouTube : Unity Shader Crash Course
Boolean Shaders
. the main feature of the AR demo is determined by the application of shaders using AR Foundation’s AR templates
. the shaders simulate a boolean operation between solids and with added transparency create the effect showcased in the previous diagram
. two solid shapes intersecting open up a “portal” where the players can see each other and conceptually transfering information through the portal
. This has been a process of finding more resources, putting them together and exploring shaders, especially the stencil buffer shader that makes the “portal effect” possible
. significant sources and thanks
Unity : Writing Shaders
YouTube : quill18creates
YouTube : PushyPixels
YouTube : Unity Shader Crash Course
