︎︎︎ Shilo Homes
Tags :
︎ AEC, AR Mobile App, ML App, Azure Playfab
Status :
Publishing
Role :
Developer
︎ Shilo inc.
Tags :
︎ AEC, AR Mobile App, ML App, Azure Playfab
Status :
Publishing
Role :
Developer
︎ Shilo inc.
︎ 2020 08
![]()

︎ Project Breakdown
. shilo is a start up that creates energy-efficient and personalized accessory-dwelling-unity, commonly knew as ADU.
. shilo required a mobile application for showcasing their products and provide to clients a wide range of customization in their hands.
shilo apps includes
. high quality render geometries
. rich layering of architectural information
. login/authentication
. amodern and readable UI
. AR mode switch
. 360 visualization
. boards for saving favorites - analytics
. Magic Leap demo for internal showcase.
. shilo is a start up that creates energy-efficient and personalized accessory-dwelling-unity, commonly knew as ADU.
. shilo required a mobile application for showcasing their products and provide to clients a wide range of customization in their hands.
shilo apps includes
. high quality render geometries
. rich layering of architectural information
. login/authentication
. amodern and readable UI
. AR mode switch
. 360 visualization
. boards for saving favorites - analytics
. Magic Leap demo for internal showcase.

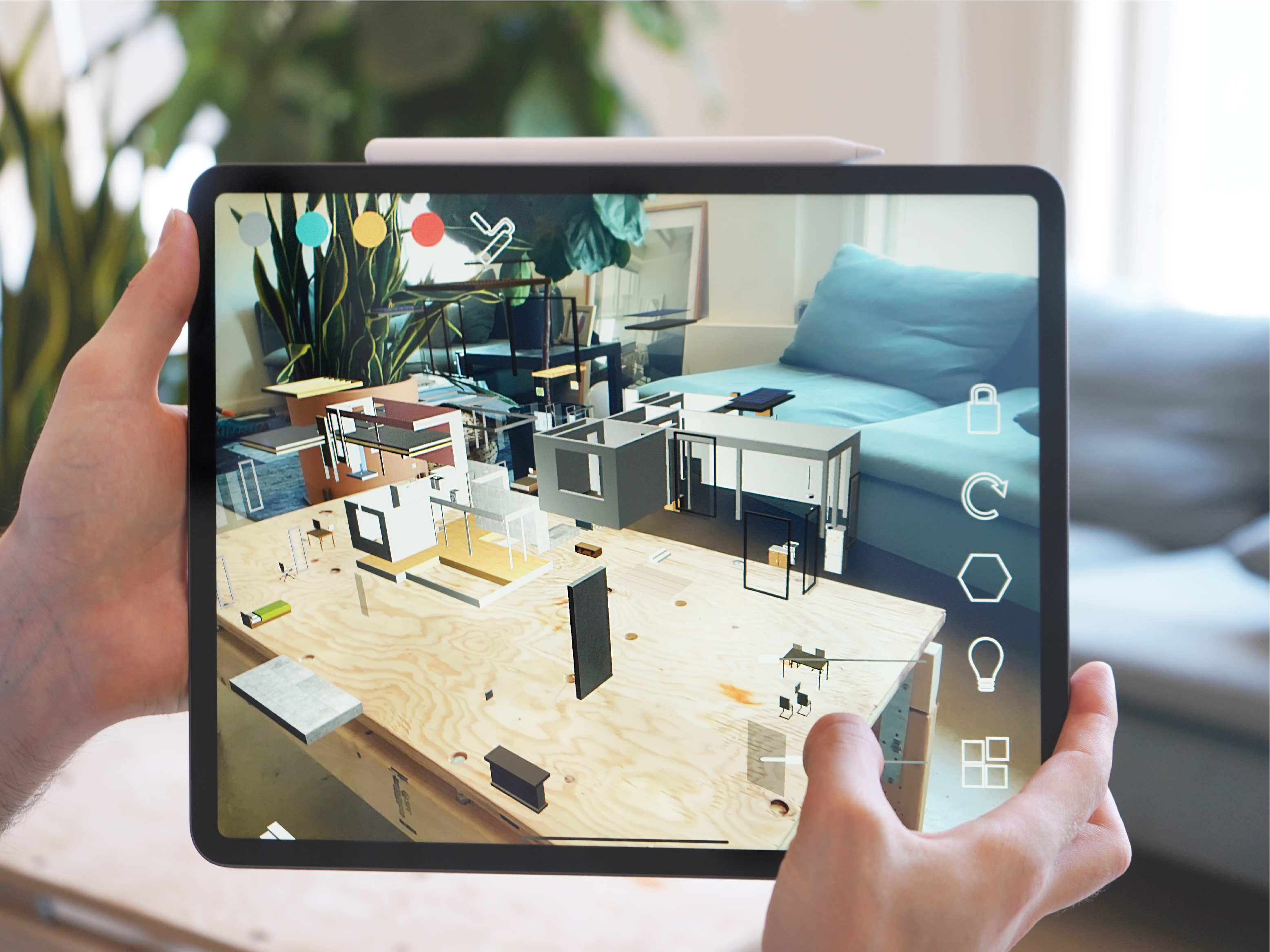

︎︎︎ Image courtesy of Shilo
![]()

︎ Phase 01
. the very first prototype was more of an investigation about the scale of representation for the ADUs showcased in the app
. it included a simple menu where you could click on the ADU and entering it in two different ways : using a gyroscope 360 view or using an AR mode where you could freely scale the building according a min and max value
. the max value is the real scale of the building
. the very first prototype was more of an investigation about the scale of representation for the ADUs showcased in the app
. it included a simple menu where you could click on the ADU and entering it in two different ways : using a gyroscope 360 view or using an AR mode where you could freely scale the building according a min and max value
. the max value is the real scale of the building
︎
Phase 01 - magic leap
︎
Phase 02 - auth and new navigation
. the homes are visualized from an external point of view
. the pinch to zoom camera allows close up and a switch between an axonometric view and top view, where the user can get into a more controlled first person view of the main environment in the house
. the homes are visualized from an external point of view
. the pinch to zoom camera allows close up and a switch between an axonometric view and top view, where the user can get into a more controlled first person view of the main environment in the house

︎ Mobile App Experience
![]()
. the development was also for shilo a way to further analyze the structure of the ADU and come up with a layer management strategy for the next units that will be fabricated

. the development was also for shilo a way to further analyze the structure of the ADU and come up with a layer management strategy for the next units that will be fabricated
︎ Moving Imported Geometry
. a common problem faced in game engines when imported not native geometry is the discrepancy in the imported object world axis and the game engine world axis reference
. the cubes represents temporarily the registered initial position of the objects
. in order to achieve the “explode” effect in AR , the position of the parts is relative to a center transform
. a common problem faced in game engines when imported not native geometry is the discrepancy in the imported object world axis and the game engine world axis reference
. the cubes represents temporarily the registered initial position of the objects
. in order to achieve the “explode” effect in AR , the position of the parts is relative to a center transform
︎ Shared Code Sample :
Get the world position of the vertex
. LocalToWorldMatrix transforms a point from local space into world space as TransformPoint, but with matrix
. in this case we get the reference for the vertices[0] of every part as new transform
Get the world position of the vertex
. LocalToWorldMatrix transforms a point from local space into world space as TransformPoint, but with matrix
. in this case we get the reference for the vertices[0] of every part as new transform
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 | public Vector3 GetVertexWorldPosition(Vector3 vertex, Transform owner) { return owner.localToWorldMatrix.MultiplyPoint3x4(vertex); } IEnumerator WaitAndAdd() { explodingParts = GameObject.FindGameObjectsWithTag("Wall"); // explodingPartsInitialPos = new Vector3[explodingParts.Length]; // for (int i = 0; i < explodingParts.Length; i++) { Mesh mesh = explodingParts[i].GetComponent<MeshFilter>().mesh; Vector3[] vertices = mesh.vertices; Vector3 positionVertex = explodingParts[i].transform.TransformPoint(vertices[0]); // GameObject pivot = new GameObject("pivot"); pivot.tag = "parent"; pivot.transform.position = positionVertex; explodingParts[i].transform.SetParent(pivot.transform); explodingPartsInitialPos[i] = pivot.transform.position; } } |
︎ App Demo [Final]
between the features
. login
. add and remove favorites
. visualize the homes in isometric view
. visualize the homes in FPS view
. ar mode
. ar drag and drop
. lighting modification
. ar plane detection toggle
. explode slider
. reset ar plan
. lock ar model position
. toggle interior and garden
between the features
. login
. add and remove favorites
. visualize the homes in isometric view
. visualize the homes in FPS view
. ar mode
. ar drag and drop
. lighting modification
. ar plane detection toggle
. explode slider
. reset ar plan
. lock ar model position
. toggle interior and garden
︎ Shared Code Sample :
AR drag and drop paint
. in the app the color of certain walls can be changed dragging a color palette from the UI to the 3D object in the scene
. this feature might going further
AR drag and drop paint
. in the app the color of certain walls can be changed dragging a color palette from the UI to the 3D object in the scene
. this feature might going further
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 | void Update() { for (int i = 0; i < rawImage.Length; i++) { if (colorOn) { RaycastHit hit; // Ray ray = camera.ScreenPointToRay(rawImage[i].position); // if ((Physics.Raycast(ray, out hit)) && hit.transform.gameObject.layer == 10) { Transform objectHit = hit.transform; // var cubeRenderer = objectHit.GetComponent<Renderer>(); // cubeRenderer.material.SetColor("_Color", rawImage[i].gameObject.GetComponent<RawImage>().color); // rawImage[i].transform.position = rawImageInitialPos[i]; } } } } |
